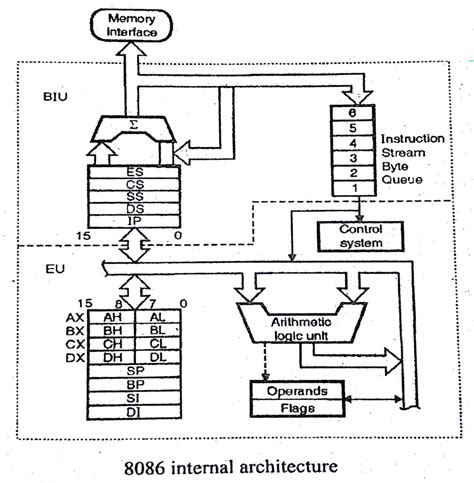

The Brain of the System: The 8086 Processor Functional Block Diagram

When it comes to computer architecture, the processor is the most important component. The 8086 processor is no exception. It serves as the brain of the system, responsible for executing instructions, performing logic operations, and controlling the flow of data. A functional block diagram of the 8086 processor reveals how this complex piece of hardware works.

Making Connections: The Bus Interface Unit

The Bus Interface Unit (BIU) acts as an intermediary between the processor and the rest of the system. It is responsible for managing memory accesses, input/output (I/O) operations, and interrupt requests. The BIU contains the instruction queue, which holds up to six instructions that are waiting to be executed. It also includes the address generation circuits that calculate physical addresses using a combination of segment registers and offset values.

Memory Management: The Segment Registers and Memory Address Generation

The 8086 architecture organizes memory into segments, which are addressed using segment registers. The processor generates physical addresses using a combination of segment registers and offset values. The segment register holds a 16-bit value that points to the base address of the current segment. The offset value is added to this base address to generate the physical address of the memory location. The processor can access up to 1 MB of memory using this method.

Keeping Track: The Instruction Pointer and Flags Register

The Instruction Pointer (IP) is a special register that points to the next instruction to be executed. The Flags Register stores information about the results of arithmetic and logical operations, providing the processor with important decision-making information. The Flags Register contains various bits that indicate whether an operation resulted in a zero, negative, or carry flag, among others. These flags are used to determine the outcome of conditional statements and loops.

Arithmetic and Logic: The Execution Unit

The Execution Unit (EU) is responsible for performing arithmetic and logic operations. It contains ALU, multiplier/divider, and other circuits. The ALU performs basic arithmetic and logical operations such as addition, subtraction, AND, OR, and XOR. The multiplier/divider circuit can perform multiplication and division operations on binary numbers. These circuits work together to execute instructions and perform calculations.

Reading and Writing Data: The Data Bus and Data Registers

Data is stored in registers, which are connected to the processor through the data bus. Different types of data registers are available, including general-purpose registers, segment registers, and index registers. General-purpose registers can hold data that is used frequently by the processor, such as the result of an arithmetic operation. Segment registers hold the base address of a memory segment. Index registers are used to facilitate address calculation and data manipulation.

Moving Data Around: The Pointer and Index Registers

Pointer and Index Registers are used to facilitate address calculation and data manipulation. They can be used to store offsets, addresses, and other important information. The pointer register holds the address of a memory location, while the index register is used to calculate memory addresses based on an offset value. These registers are essential for moving data around the system efficiently.

Handling Interrupts: The Interrupt Control Circuit

Interrupts are used to handle events that require immediate attention, such as keyboard input or system errors. The Interrupt Control Circuit manages interrupt requests and determines the appropriate course of action. When an interrupt occurs, the processor saves its current state and jumps to a special interrupt handler routine. Once the interrupt has been handled, the processor returns to its previous state and resumes normal operation.

Communication Protocols: The Input/Output Unit and Control Bus

The Input/Output (I/O) Unit communicates with external devices, such as storage devices and peripherals, using the Control Bus. The I/O Unit plays a crucial role in ensuring that data flows smoothly between the processor and the rest of the system. It contains various circuits for controlling the flow of data, including data buffers, status registers, and control registers.

System Control: The Clock Generator and Power Management Circuitry

The Clock Generator ensures that the processor operates at the correct frequency, while power management circuits help regulate power usage. These circuits are critical in ensuring that the system runs smoothly and efficiently. The clock generator produces a steady stream of clock pulses that synchronize the operation of the processor and other components. Power management circuits control the voltage and current supplied to the processor and other components, helping to extend the life of the system and reduce energy consumption.In conclusion, the 8086 processor is a complex piece of hardware that serves as the brain of the system. Its functional block diagram reveals how different components work together to execute instructions, perform calculations, and manage data. From the Bus Interface Unit to the Input/Output Unit, each component plays a vital role in ensuring that the system runs smoothly and efficiently.
